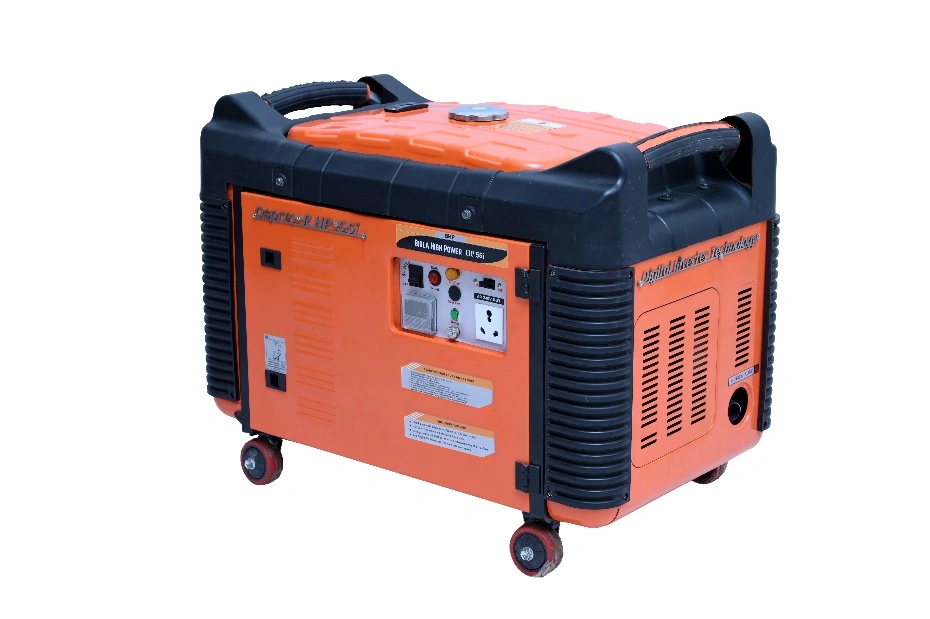

BHP 5.0 KVA Genset Ultra-Light Weight Digital Invertor Based Alternator HP-50is
Model Name: HP 50is
Special Highlight:
- 5.0 KVA Genset, Ultra-Light Weight, Digital Invertor Based Alternator, Electronic Governor keeps Low Engine RPM at part loads for low fuel consumption.
- Gives a Stable Regulated voltage 230 ± 1% and Stable Frequency 50 Hz ± 1 % & Pure Sine Wave, THD < 2%
- To get more Power to Run Heavy Equipment, 2 or More HP-50is Generator can be made to Run In Parallel, Two HP-50is Generators in Parallel will produce 4.5 KVA + 4.5 KVA = 9KVA Power
Type: Portable Petrol/LPG Inverter Generator
Starting System: Recoil Start + Self Start
Fuel Type: Petrol + LPG (Optional)
Fuel Tank Capacity: Petrol -20.5 Ltr.
Generator & Alternator
| Application | Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in IT Sector / Remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, All types of Modern House Hold Electrical and Electronic Appliances Like Refrigerator Microwave, Induction Plate, Automatic Washing Machine, 1.5Ton Air conditioner, For charging Battery Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc. |
| *Max AC. Output VA | 5000 |
| *Rated AC. Output VA | 4200 |
| Rated Current Amps | 18.3 |
| NFB Amps | 18 |
| AC. Voltage | 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2% |
| Alternator Type | Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation |
| Invertor | 100 KHz, IGBT Based Digital Invertor – 5.0 Kw |
Engine
| Type | OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling |
| Maximum Power | 6.5 HP @ 3600 |
| Bore x Stroke | 70×58 mm |
| Displacement | 223 cc |
| Governor | Electronic Governor (Load Sensitive – Variable Speed)
Engine RPM 2200 (No Load) to 3800 RPM (at Full load) |
| Fuel Consumption | Approx. Petrol 1.4 ltr/hr,
LPG: 825gm./hr. |
| Continous Running with full Tank at Rated load | Approx. 15 hours |
| Lube. Oil Capacity | 600 ml. |
| Lubricating Oil Consumption | 2.5 gm./Hr. |
| Sound level (Db) (from 1 meter) | <86Db (as per CBCP – IV Norms) |
Panel & Other Standard Features
| Voltmeter | Analogue |
| Oil Alert System | Yes |
| Over Load Indicator | Yes |
| 2 Genset Paralleling Capability | Yes, But extra socket panel is required (@ extra cost) |
| LPG/ Gas Fuel Compatibility | Yes (Optional) |
| Remote Start Compatibility | Yes (Inbuilt) |
| Fuel Level Gauge | Yes |
| AC On /Off, Overload Protection (NFB) | Yes |
| Electronic Over Load Protection | Yes, Inbuilt with Inverter |
| Costar Wheels | Yes |
Packing
| Weight Appprox (Kg) | Kg |
| Dimension LxWxH (mm) | 785 mm X 520 mm X 608 mm |
| Lithium Battery 12.8V – 15 Ah | 192 x 87 x 83 mm |
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation.
| Model Name | HP 50is |
|---|---|
| Fuel Type | LPG, Petrol |
| Fuel tank Capacity | 20.5 Ltr. |
| Starting System | Recoil Start, Self Start |
| Product Type | Portable Petrol/LPG Inverter Generator |
