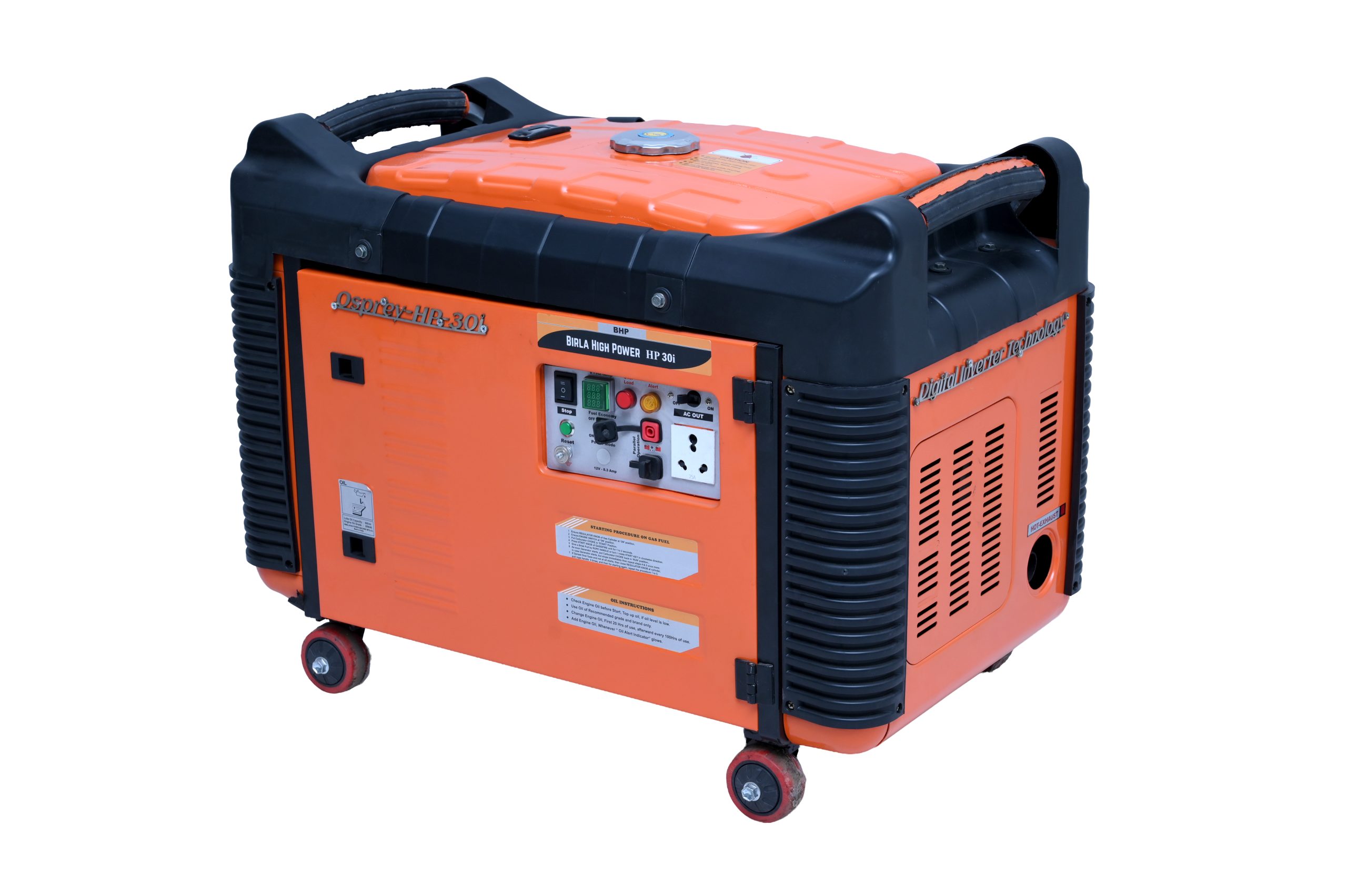

Generator & Alternator
| Application | * Being Light Weight and Portable Genset, It is very suitable for serving electrical requirements in remote areas / Field applications and running of sensitive Electronic Products Like Laptops / Computers / Digital Appliances, For charging Inverters, for all types of Frequency & Voltage sensitive Equipment’s, Military & Powering Defense Equipment’s Etc. |
| *Max AC. Output VA | 3300 |
| *Rated AC. Output VA | 3000 |
| Rated Current Amps | 13 |
| NFB Amps | 13 |
| AC. Voltage | 230 Volts ± 1%, 50 Hz ± 1%, Single Phase, THD < 2% |
| Alternator Type | Multi-Phase – Permanent Magnet (18 Pole) – Self Excitation |
| Invertor | 100 KHz, IGBT Based Digital Invertor – 3 Kw |
Engine
| Type | OHV25°Inclined, Single Cylinder,4 Strokes, S.I, Forced Air Cooling |
| Maximum Power | 6.5 HP @ 3600 |
| Bore x Stroke | 70×58 mm |
| Displacement | 223 cc |
| Governor | Electronic Governor (Load Sensitive – Variable Speed)
Engine RPM 2200 (No Load) to 3800 RPM (at Full load) |
| Fuel Consumption | Approx. Petrol 1.3 ltr/hr,
LPG: 750gm./hr. |
| Lube. Oil Capacity | 600 ml. |
| Lubricating Oil Consumption | 2.5 gm./Hr. |
| Sound level (Db) (from 1 meter) | <86Db (as per CBCP – II Norms) |
Panel & Other Standard Features
| Voltmeter | Yes ( Analog meter ) |
| Oil Alert System | Yes |
| Over Load Indicator | Yes |
| 2 Genset Paralleling Capability | Yes |
| LPG/ Gas Fuel Compatibility | Yes |
| AMF Panel Auto & Remote Start Compatibility | No |
| Fuel Level Gauge | Yes |
| AC On /Off, Overload Protection (NFB) | Yes |
| Electronic Over Load Protection | Yes, Inbuilt with Inverter |
| Fuel Economy/Power mode | Yes |
| Costar Wheels | Yes |
| Packing | Weight Appprox (Kg) |
| Dimension LxWxH (mm) | 785 mm X 520 mm X 608 mm |
| Battery Specification | 12.8 Volt -15 Ah |
Terms & Condiions:
1. All Prices are ex factory Palghar & Dehradun.
2. Transportation extra. (as per actual)
3. Gst @ 18% Extra.
4. All Self start Generators are supplied with battery appropriate without battery.
5. All process are subject to changes without any notification, without any notification.
6. 100% Advance payment.
Specifications are for reference only, Because of continuous improvements and up-gradation by our R&D team. This specifications can change without any prior intimation
